Combine Tea Plucking & Pruning Machines

Leading Manufacture of Tea-Leaf Picker with superior quality,having been accepted for decades worldwide,as well as Japan.

OHC-W(MONSTER)

OHC-W Model:OHC-W
Engine: 4 cycle water cooling 4 cylinder diesel engine
Displacement: 2197cc
Rated output: 33.8KW(46PS)/2600rpm
Container type harvester
Container capacity: 4.3m³



OHC-10VB/20VB/30VB

OHC-8VB/10VB/20VB Model:OHC-10VB/20VB/30VB
Engine:4cycle Water-cooled 3cylinder Diesel
Displacement: 1642cc
Rated output:25.2kw(34.3ps)/2800rpm
Container type harvester
Container capacity: (10VB)2.0m³,
(20VB)2.2m³,(30VB)2.8m³

(OHC-10VB)

(OHC-30VB)

OHC-5DVBII

OHC-5DVBII Model:OHC-5DVBII
Engine: 4 cycle Water-cooling 4 cylinder diesel engine
Displacement: 1123cc
Rated output: 18.5KW(25.2PS)/3000rpm
Container type harvester

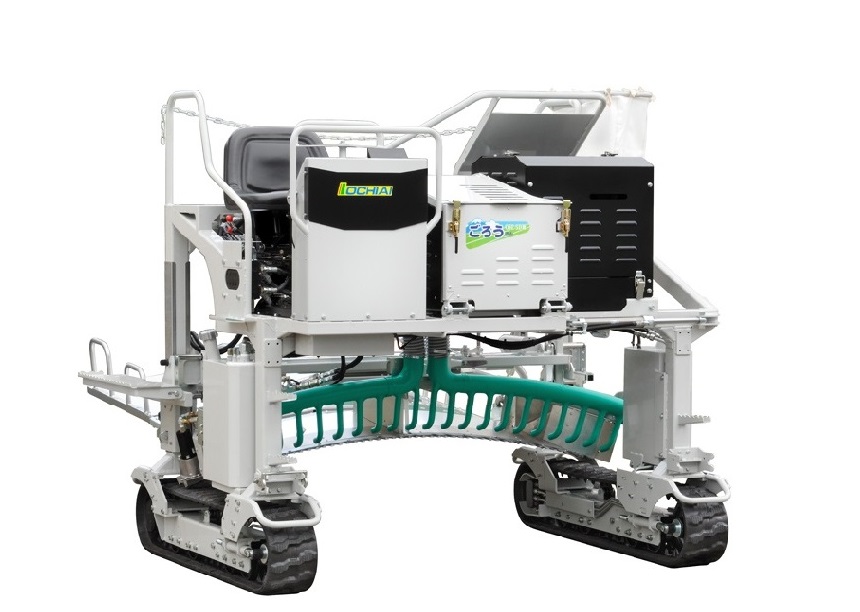

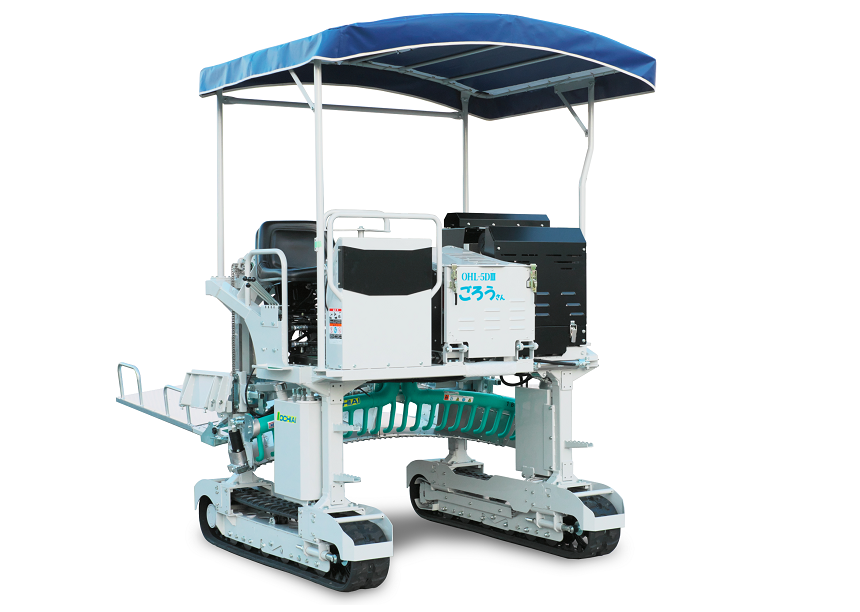

OHL-5DIII

OHC-W Model:OHL-5DIII
Engine: 4 cycle Water-cooling 3 cylinder diesel engine
Displacement: 1155cc
Rated output: 16.7KW(22.7PS)/2800rpm


OHC-W










Model:OHL-5DIII (gauge 1400-1600)
Engine: 4 cycle Water-cooling 3 cylinder diesel engine
Displacement: 1123cc
Rated output: 16.2KW(22PS)/3000rpm

English


Chinese

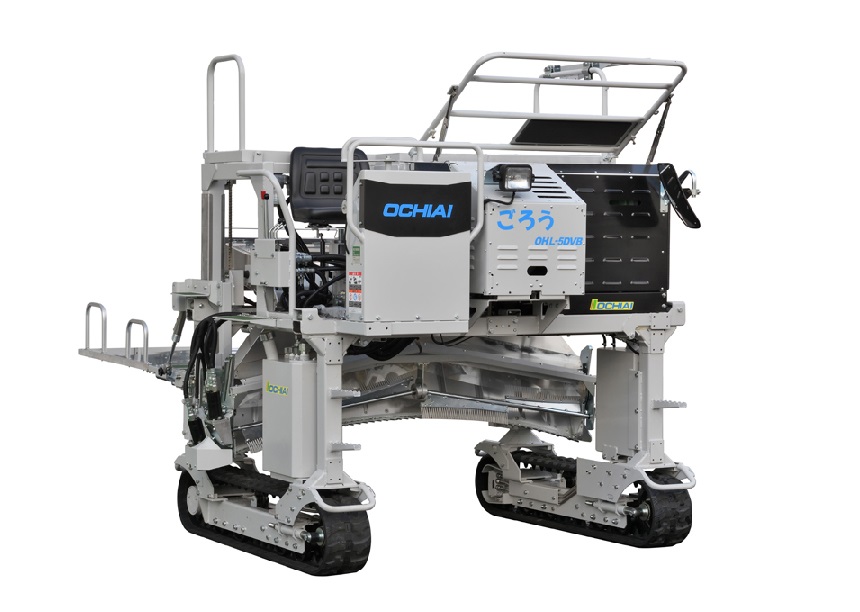

OHL-5DVB

OHL-5DVB Model:OHL-5DVB
Engine:4cycle Water-cooled 3cylinder Diesel
Displacement: 1155cc
Rated output: 16.7kw(22.7ps)/2800rpm

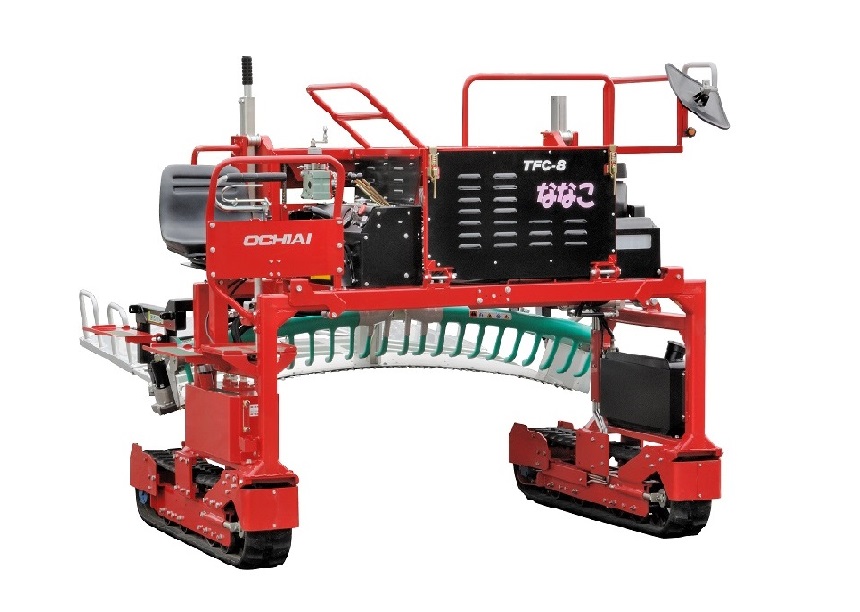

TFC-8

TFC-8 Model:TFC-8
Engine: air cooling 2 cylinder 4 cycle gasoline engine
Displacement: 680cc
Rated output: 14.5kw(19.7PS)/3600rpm


youtube

OMS-10

OMS-10BT
Model:OMS-10

Engine: 4 cycle water cooling straight-three engine diesel
Displacement 1642cc
Rated output: 25.2 kW(34.3PS)
Fuel capacity: 35L




Chemical part

Tank capacity: 800 L (400L * 2 tanks)
Maximum absorption rate: 69 L/min (1,200rpm)
Operational absorption rate: 60 L/min (1,000rpm)

OMT-6/ 6BT

OMT-6BT

youtube
Model:OMT-6BT

Engine: 4 cycle water cooling 4 cylinder diesel engine
Displacement: 2197cc
Maximum output: 33.8KW(46PS)
Fuel capacity: 25L
Cutting part: free hummer and pruning blade



OMR-12

OMR-12
Model:OMR-12

Engine: 4 cycle water cooling 4 cylinder engine
Displacement: 2197cc
Output: 33.8kw (46PS)
Attachment: Subsoiler , Fertilizer sprayer ,
      Compost sprayer



OMR-5

OMR-5
Model:OMR-5

Engine: 4 cycle water cooling 3 cylinder engine
Displacement: 1330cc
Output: 20.0kw(27.2PS)
Attachment: Sprayer , Fertilizer application ,
      Cultivator , Pruner ,
      Compost application , Hummer rotor ,
      Subsoiler , Side cutter
